Have a Jeff double oven, about 5 years old. 20 mins to get

The elements and fan work fine ?

Did he check the element with a multimeter ?

I mean if any of those were not open circuit why was it replaced?

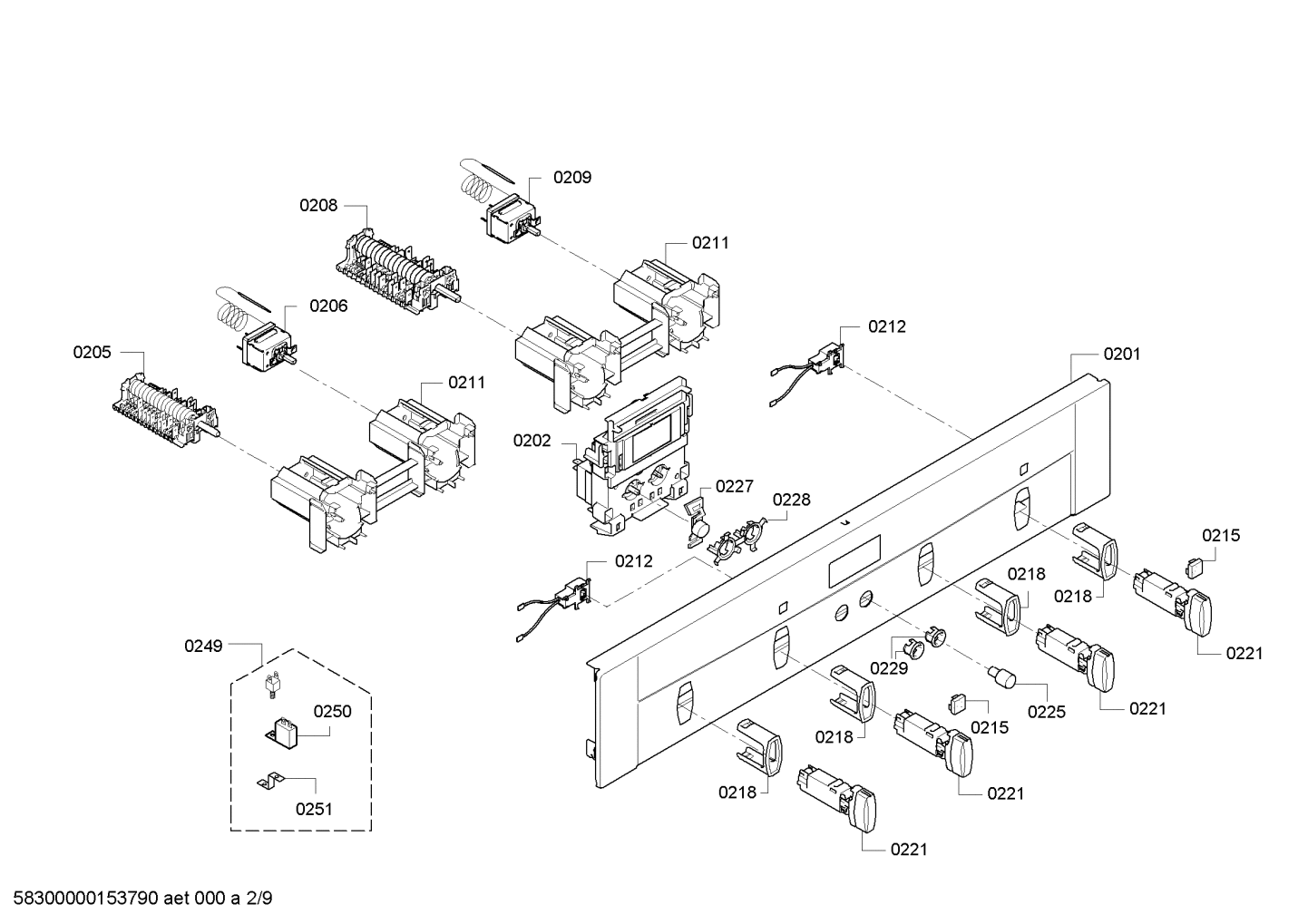

Please check this IMAGE #1

(part#206 and part#209 are temperature regulators), did he replace both of them ?

Part#249 is temperature limiter, did he test that part with a multimeter ?

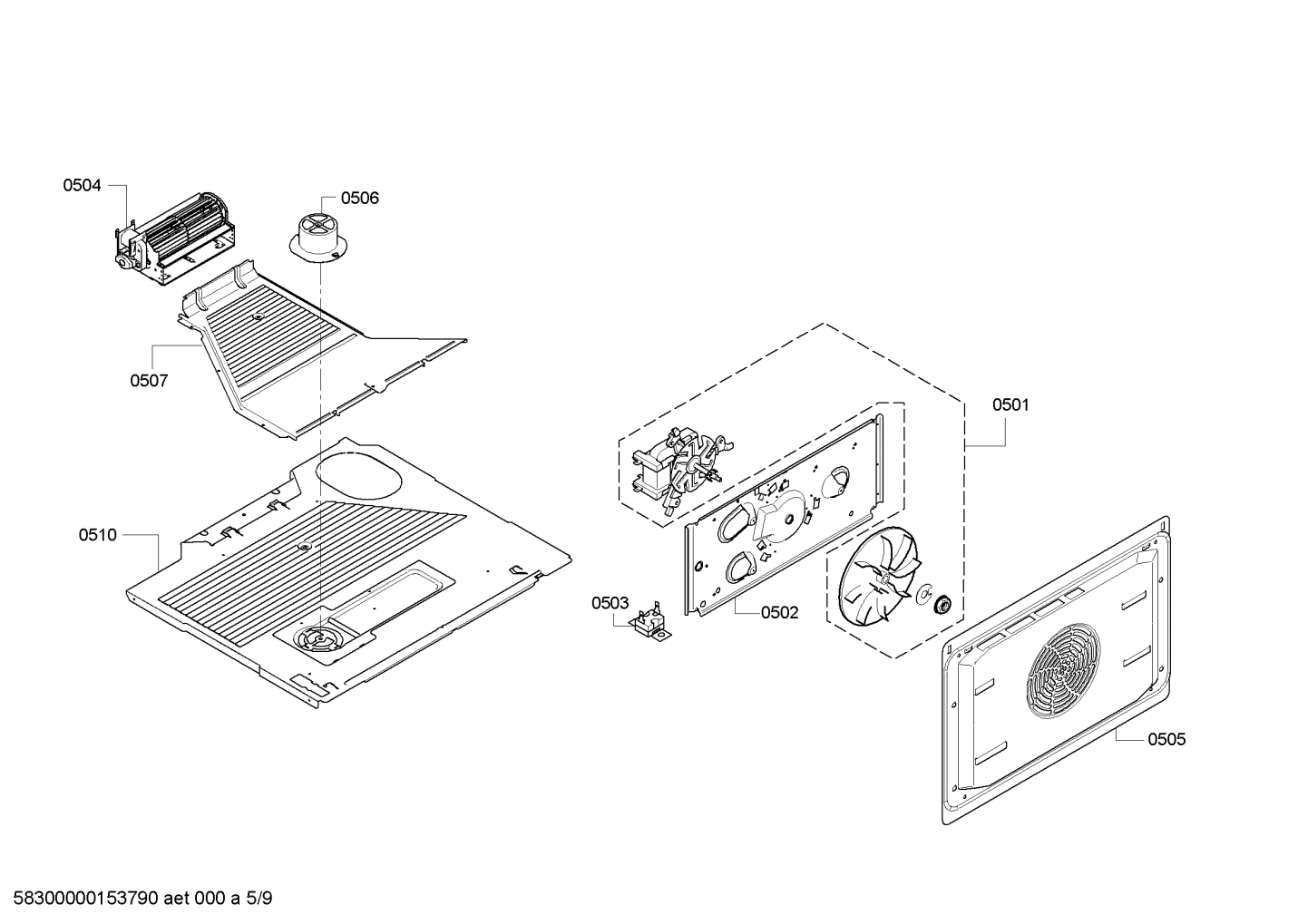

Also check this IMAGE #2

If the above parts from Image#1 appear fine then test part#503 for continuity.

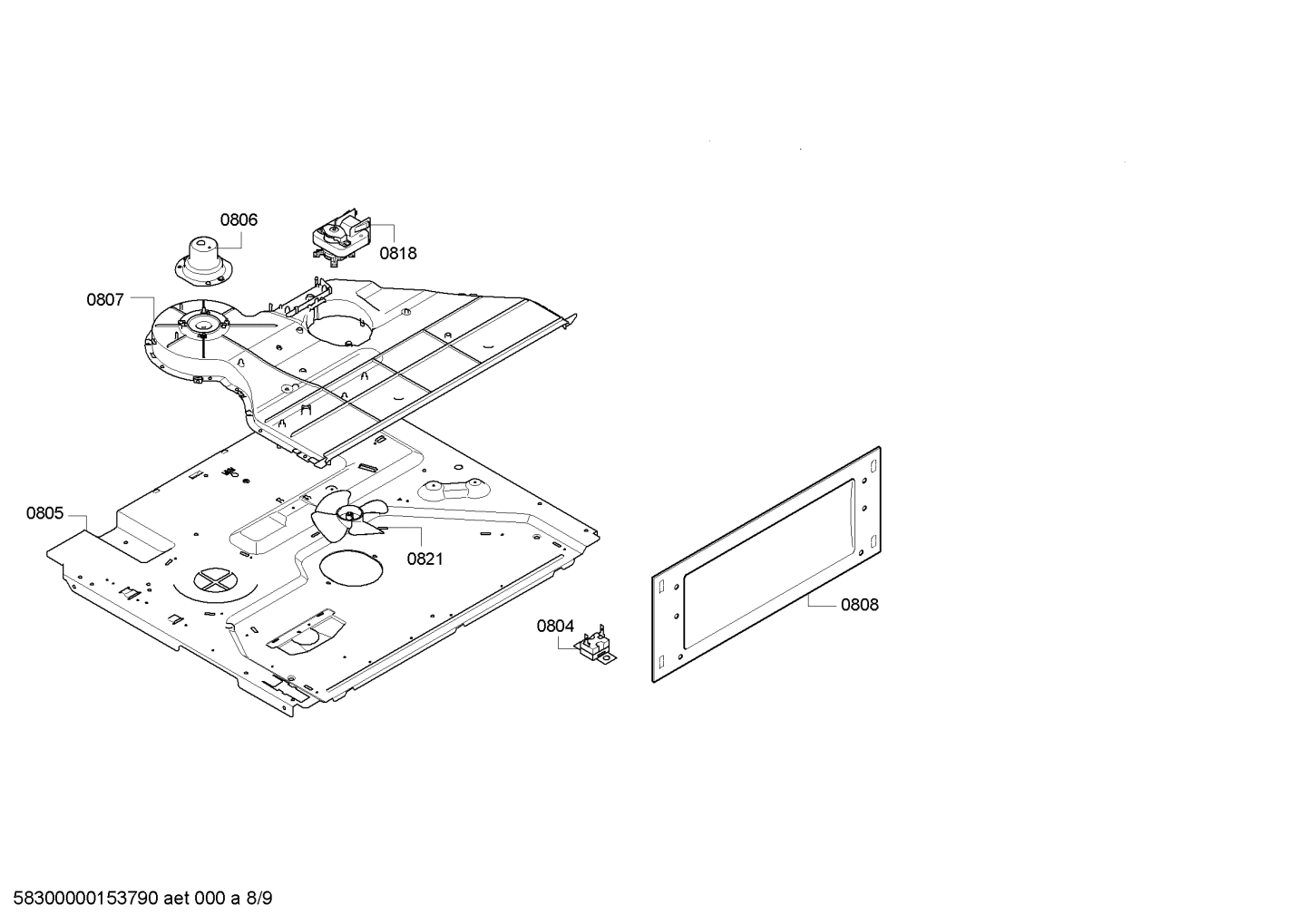

After you have tested the above parts and they are all fine/replaced earlier then check this IMAGE#3 (part#804 will need replacement).

Let me know how it goes.
